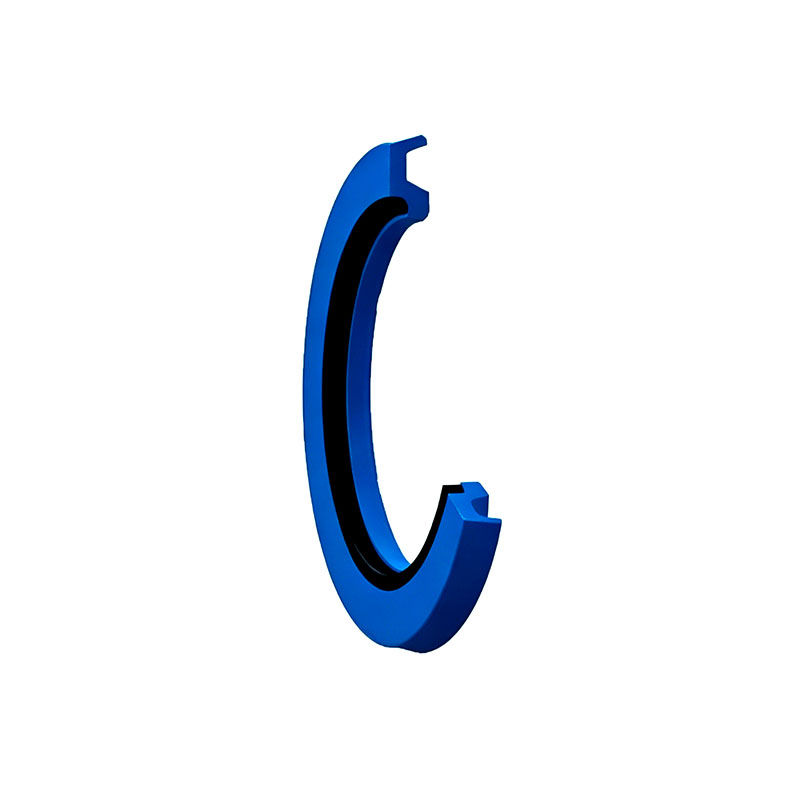

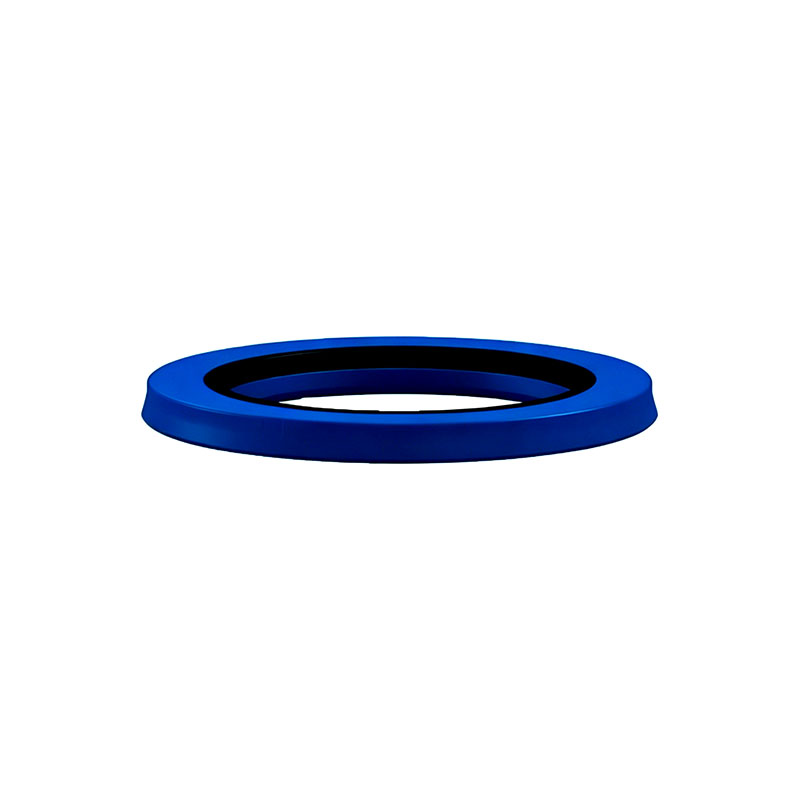

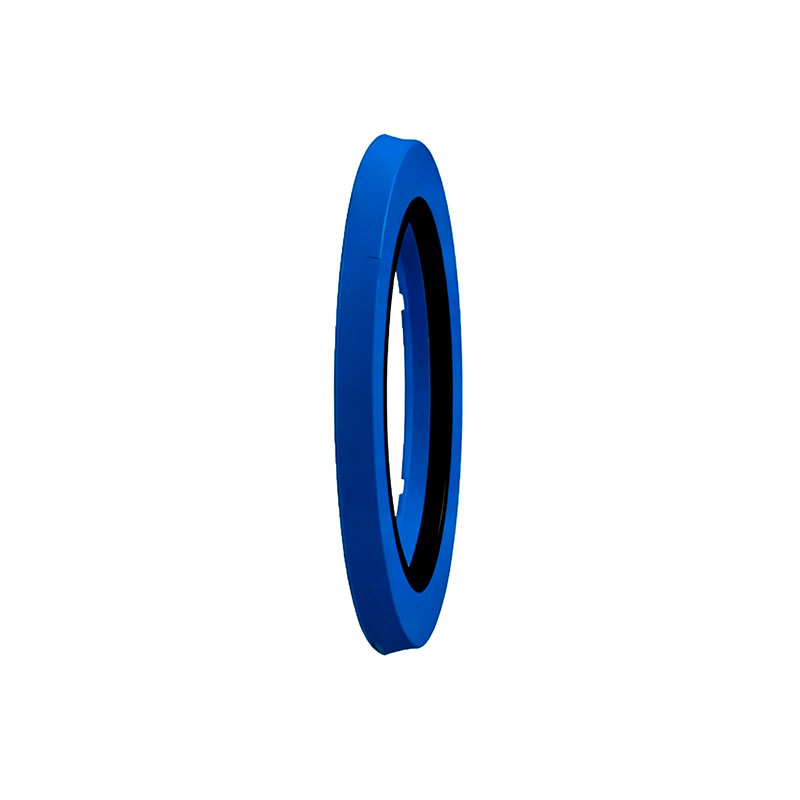

HRX Metric Hydraulic Rod Seal features a polyurethane sealing element and reinforced backup ring for excellent wear resistance, pressure relief performance, and anti-extrusion capability. Ideal for hydraulic cylinders used in construction machinery, industrial vehicles, and heavy-duty hydraulic equipment.
Item NO.:
HRXOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
ShanghaiProduct Description
HRX Metric Hydraulic Rod Seal is a high performance rod seal designed for hydraulic cylinders operating under demanding conditions. Combining a wear-resistant polyurethane sealing element with a reinforced backup ring, it delivers reliable sealing performance, effective pressure relief, and enhanced protection for the primary sealing system.
Its specially engineered outer lip features pressure-relief grooves that efficiently release trapped back pressure, helping prevent damage to the main rod seal. With excellent wear resistance, impact resistance, and anti-extrusion capability, this PU rod seal for hydraulic cylinder applications is ideal for heavy-duty equipment, including excavator cylinder rod seal systems, where durability and long-term reliability are essential.
Technical Data
| Parameter | Value |
| Operating temperature | -30°C to +100°C(M2005) |
| -20°C to +120°C(MF112) | |
| Working Pressure | ≤ 50 MPa |
| Surface speed | ≤ 1 m/s |
| Material | PU+POM (M2005) |
| PU+Nylon (M2112) | |
| Design type | Metric Hydraulic Rod Seal |
| Unit system | Metric |
Applications

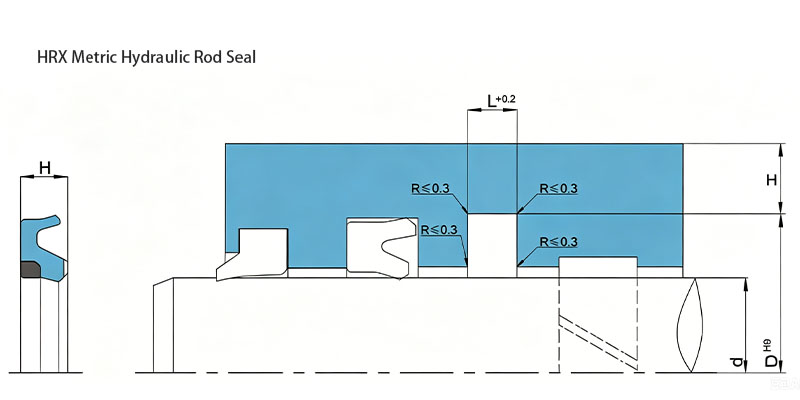

Product Parameter Table
| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| HRX 40X55.5X6.3 MF112 | 40 | 55.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 45X60.5X6.3 MF112 | 45 | 60.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 50X65.5X6.3 MF112 | 50 | 65.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 55X70.5X6.3 MF112 | 55 | 70.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 60X75.5X6.3 MF112 | 60 | 75.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 63X78.5X6.3 MF112 | 63 | 78.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 65X80.5X6.3 MF112 | 65 | 80.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 70X85.5X6.3 MF112 | 70 | 85.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 75X90.5X6.3 MF112 | 75 | 90.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 80X95.5X6.3 MF112 | 80 | 95.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 85X100.5X6.3 MF112 | 85 | 100.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 90X105.5X6.3 MF112 | 90 | 105.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 95X110.5X6.3 MF112 | 95 | 110.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 100X115.5X6.3 MF112 | 100 | 115.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 105X120.5X6.3 MF112 | 105 | 120.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 110X125.5X6.3 MF112 | 110 | 125.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 115X130.5X6.3 MF112 | 115 | 130.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 120X135.5X6.3 MF112 | 120 | 135.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 125X140.5X6.3 MF112 | 125 | 140.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 130X145.5X6.3 MF112 | 130 | 145.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 140X155.5X6.3 MF112 | 140 | 155.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 150X165.5X6.3 MF112 | 150 | 165.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 160X175.5X6.3 MF112 | 160 | 175.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 170X185.5X6.3 MF112 | 170 | 185.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 180X195.5X6.3 MF112 | 180 | 195.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 190X205.5X6.3 MF112 | 190 | 205.5 | 6.3 | PU+POM、PU+Nylon |
| HRX 200X221X8 MF112 | 200 | 221 | 8 | PU+POM、PU+Nylon |
| HRX 220X241X8 MF112 | 220 | 241 | 8 | PU+POM、PU+Nylon |
HRX Rod Seal
 |
|
| Material code | M2005、MF112 |
| Speed | Up to 1 m/s (3.2 ft/s) |
| Temperature range | -30°C to +100°C(–22 to +212 °F) |
| -20°C to +120°C(–4 to +248 °F) | |
| Dimension standards | Some sizes fit seal housings in accordance with ISO 6195-B:2013. |
| Size list | → Metric |
| Additional information | → Metric Hydraulic Rod Seal |
| Maximum values of application parameters (e.g. speed, temperature) should not be applied continuously nor simultaneously. | |
